Building material colorful stone coated steel roof tiles / steel roofing tile sheet
Clear acrylic overglaze:increase brightness and bonding strength,to prevent rain leak to the lower layer and granular structure.
Stone ships:cut off UV to protect the grass- roots,reduce rain noise and improve decorative function.
Basecoat:stucture of adhering the up and down layers ,to proctect the underlying structure.
Protective coat:protect aluminum zinc layer,enhance the paint daubs fuction of the layer surface.
Zinc aluminum:high heat refiective rate,and strong corrosion resistance,energy conservation and it can increase the steel plate using age.
Steel base:higer strenth steel metal construction of colorfil ston coated metal roof tile basis.
Stone coated steel roofing tile features:
More than 30 years to lifetime warranty.
recycle use
lightweight
fire resistant
water-resistant
easy to install
wind resistant up to 120mph
low maintenance
beautiful apperance
hail resistant up to 3 inches
wildly applicable.
Building Materials Stone Coated Metal Roof Tile Shingles
|
|
Type |
Model NO | Size | Installed size |
|
Classical Tile |
Jh01 | 1400mm*420mm | 1340mm*370mm | |
| JH02 | 1340mm*420mm | 1290mm*370mm | ||
| Modern classical Tile | JH03 | 1340mm*420mm | 1290mm*370mm | |
| Shingle Tile | JH04 | 1340mm*420mm | 1290mm*370mm | |
| Rainbow tile | JH05 | 1300mm*420mm | 1250mm*370mm | |
| Makuti grained Tile | JH06 | 1340mm*420mm | 1290mm*370mm |
| Name | Building material colorful stone coated steel roof tiles / steel roofing tile sheet |
| Thickness | 0.35mm,0.38mm,0.4mm,0.45mm,0.5mm |
| Type | Bent Tiles, Malino Type ,Classical Tile;Modern classical Tile;Shingle Tile;Rainbow Tile;Makuti Grained Tile |
| Weight | 2.6-3.2kg per piece |
| Overall size | 1340mm*420mm |
| Valid size | 1270mm*380mm |
| Acreage per tile | 0.48SQM |
| color | red; black; green; charcoal black; weathered brown; grey; sapphire blue...12 standard colors or as your request |
| Application | Villas ,townhouse, apartments ,tourist destination building ,and roof conversion project |

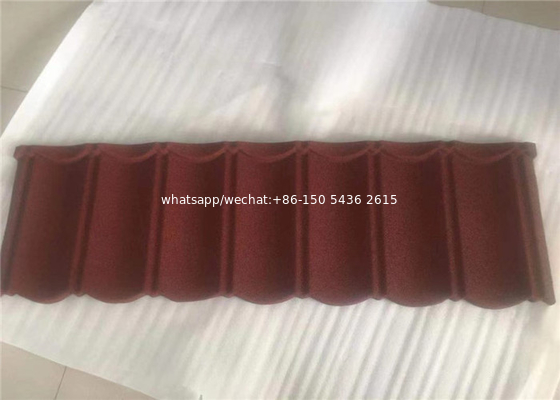

top side as following:
Back side as following:
Packing as following:
